HP3335A Synthesizer/Level Generator
- Frequency Range: 200 Hz - 81 MHz, Resolution: 0.001 Hz.
- Sine wave only.
- Sweep.
- Output level: -88.74 dBm (1.33*10-12 Watts) to +13.01 dBm (20.0 mW, 20.0*10-3 Watts), Resolution: 0.01 dB.
- HP's base price in 1993: $13,400. Option 001: $1,330. Base price 2020 dollars: $23,693.27 (From: frink)
- GP-IB.
My 27 year old HP3335A fails the spurious specification (-75 dBm) at +/- 60 Hz by about 5.5 dB. Probably needs power supply work.
It still meets the harmonic distortion specifications by at least 7 dB. ( <-45 dBm between 200 Hz and 10 MHz; <-40 dBc between 10 MHz and 80 MHz)

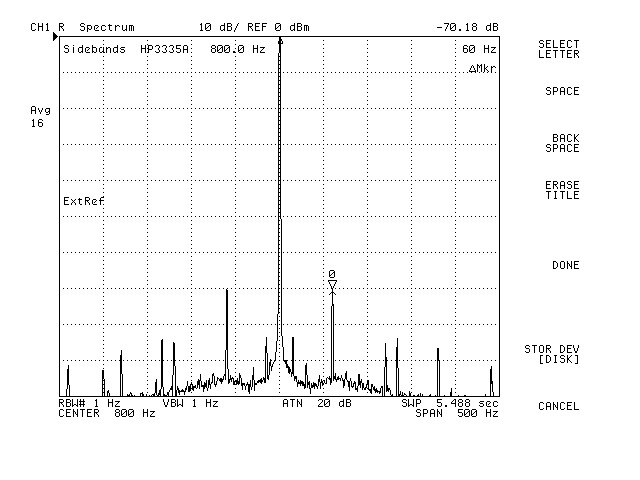

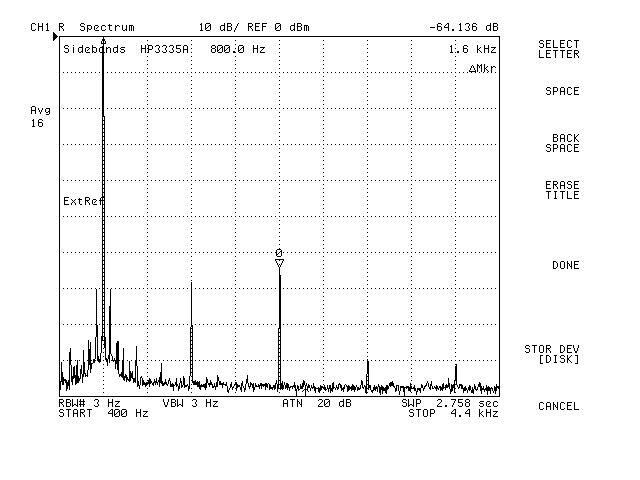

800 Hz Sidebands and Harmonics

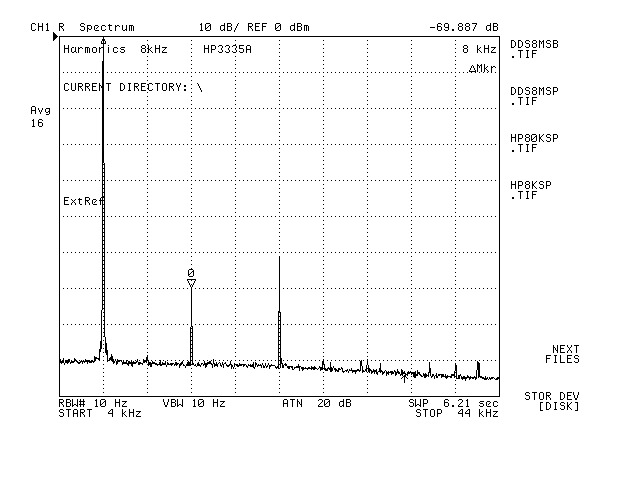

8 kHz Sidebands and Harmonics

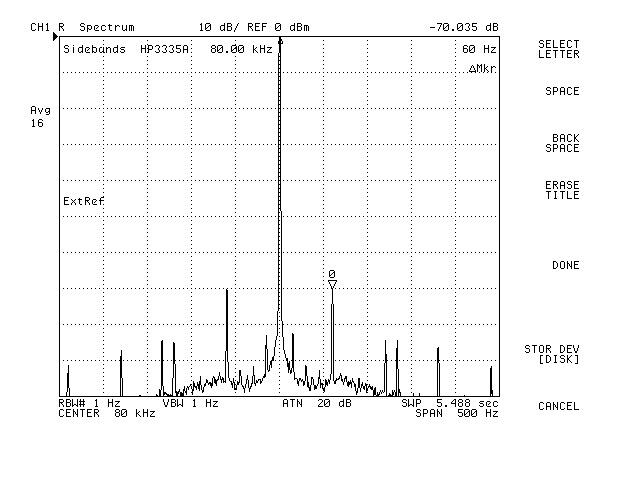

80 kHz Sidebands and Harmonics

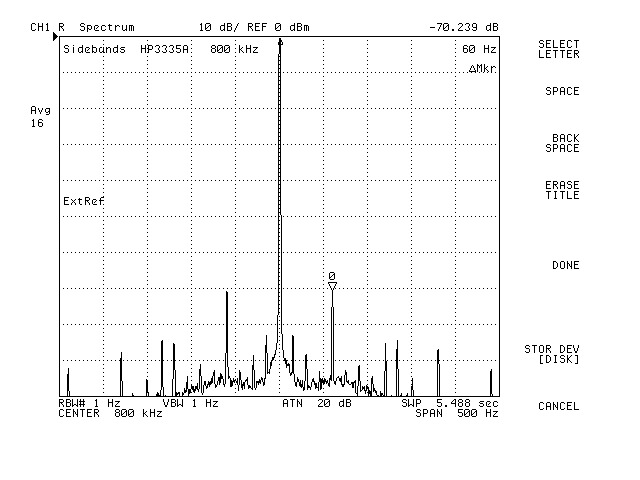

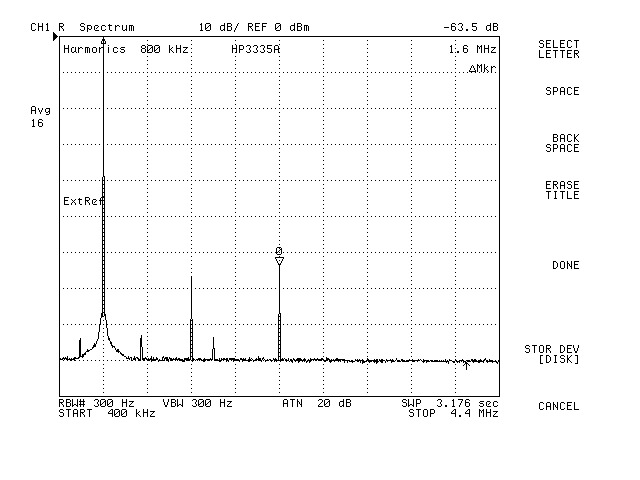

800 kHz Sidebands and Harmonics

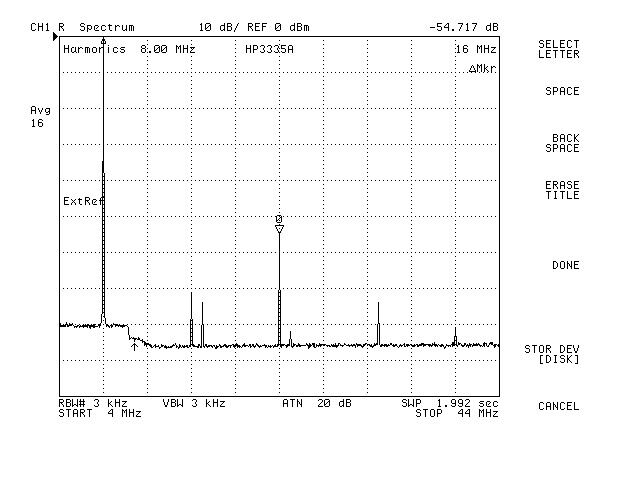

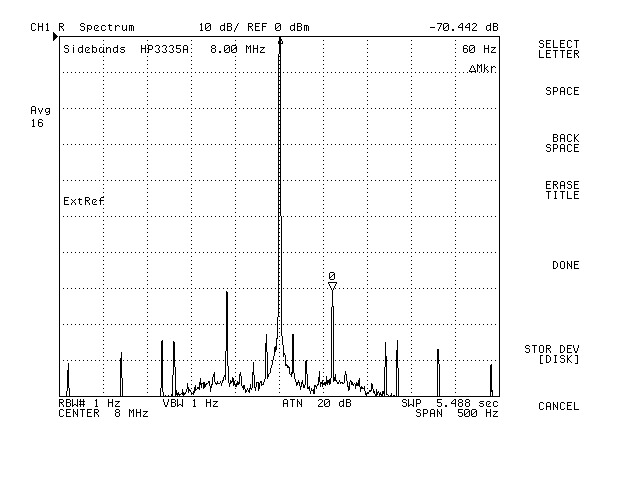

8 MHz Sidebands and Harmonics

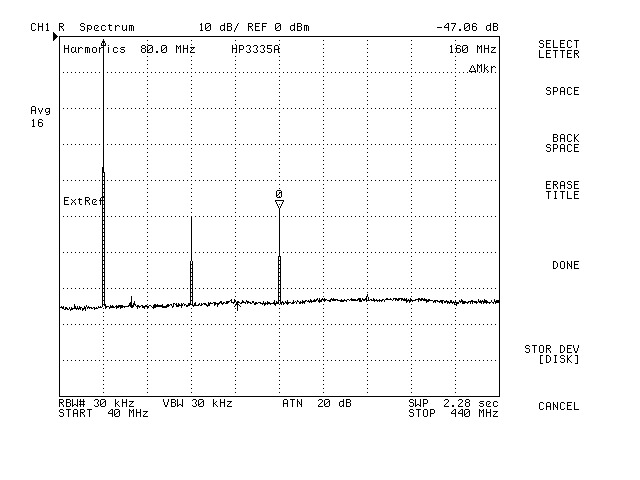

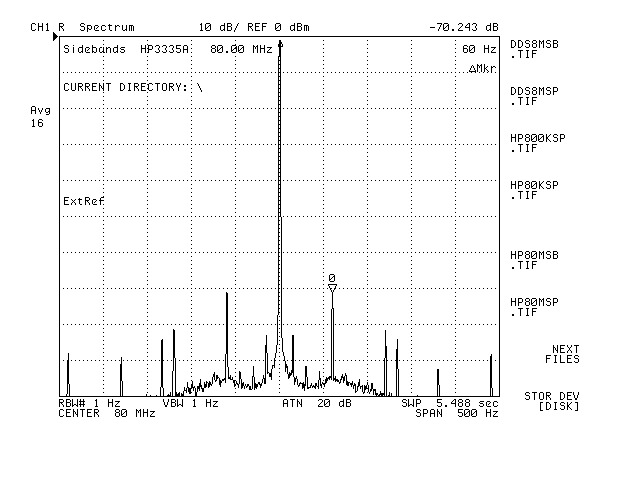

80 MHz Sidebands and Harmonics
